Event - Based Modbus Converter Relay Drivable Output 4 - 20mA Disconnect Alarm

modbus rtu modbus tcp converter, modbus converter

System Feature

• Cortex M3 32-bit ARM
• Reliable performance with built-in double watchdog, 24×7 operation
• Support signal fileter
• Network-reconnect and retransmission to ensure data accurately transmit
• Automatically or manually update interior clock by sms or NTP or server
• Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
• Event-based linkage programming, e.g. alarm linkage output
• Easy used GUI configure software for setting up to 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Monitor dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• DO can be activated by remote or local schedule
• Remember status when power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• on/off/pulse DO by remote control or local event
• Status memory function for power lost

AI feature

• 4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision)
• Transduce 4-20mA(0-5V) to actual value
• Support offset and gain, alarm parameters, upload data setting
• Sensor disconnect alarm

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Send sms alarm when input is triggered or reach alarm level
• All alarm and recover sms text can be edited
• Query any IO channel’s status or value via sms command
• Control output via sms command
• Configurable schedule for sms report IO channel's status or value
• Sending sms command to update setting
• Can query SIM card balance, sms forward
• Power lost and recover alarm by sending sms

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• TCP/IP connect at most 4 servers(support Static IP address or domain)
• Events(e.g. alarm, timer) trigger upload data
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Transfer RS485 or RS232 Data to wireless network

Modbus feature

• Can be modbus master read/write salve over RS485
• As a RS485 I O module to be polled by modbus master
• Run Modbus RTU or TCP protocol over GPRS/3G

rs485 to modbus tcp converter

modbus rtu ethernet converter

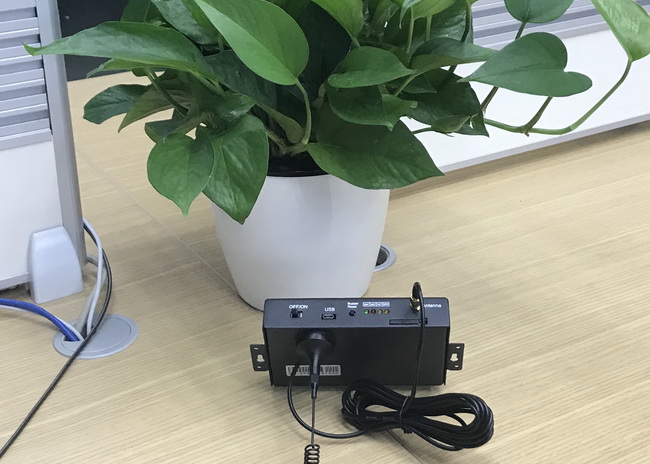

Event - Based Modbus Converter Relay Drivable Output 4 - 20mA Disconnect Alarm Images
